Pendragon

Pendragon is a name historically associated with ancient kings of the Britons, most famously, Arthur of Camelot. The figurative title Pendragon or Pen Draig means head or chief dragon, symbolising the bearer’s uncontested leadership.

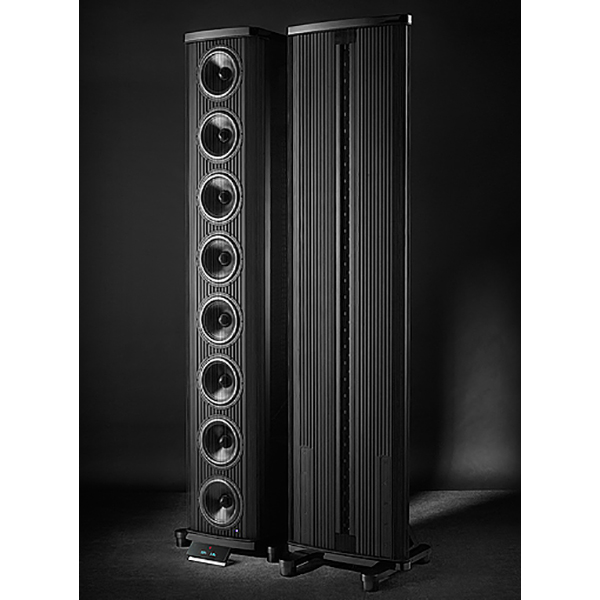

As we launch the Gryphon Pendragon, the most ambitious reference loudspeaker system in the history of Gryphon Audio Designs, we feel that it is a fitting name.

Pendragon employs a further refinement of the self-powered bass tower made famous in its predecessor, the revolutionary Gryphon Poseidon system Pendragon pairs it with four Air Motion Transformer (AMT) drivers and a two-meter tall ribbon in an open baffle configuration for ideal coverage of an exceptionally wide frequency range extending from 16 Hz to 32 kHz.

Unlike compromised, “universal” amplifiers, the Pendragon bass amp has been conceived and built exclusively for optimal integration with the system’s custom-built drive units, rigid cabinet and flexible, user-adjustable room integration controls, for a level of performance unachievable by any standard mix-and-match approach.

The transparency, speed and spine-tingling musical realism of the resulting system set new standards for audio virtues such as resolution, timbre and soundstaging, illuminating the music in ways previously experienced only occasionally in glimpses or fragments of a speaker’s overall performance, but rarely in a true full-range system.

Leírás

Three-way, four piece loudspeaker system

System response 16 – 32,000 Hz, + 3 dB (depending on Q setting and room size)

Separate active crossover network for each channel isolated in bass tower

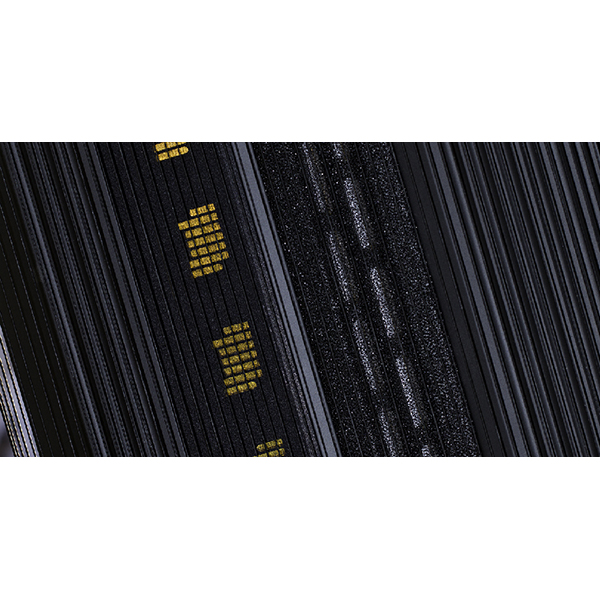

Four dipolar AMT (Air Motion Transformer) super-tweeters per channel in vertical array

Wideband, dipolar thin-film planar magnetic, line source ribbon driver

Linear, push-pull ceramic magnet system

Reinforced, low-diffraction open high frequency baffle

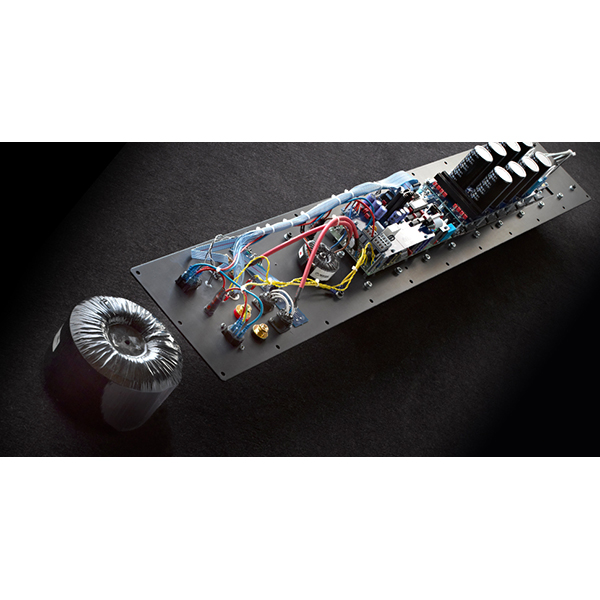

Custom designed Gryphon Class A/B bass tower amplifiers, 1000W continuous, 4000W peak

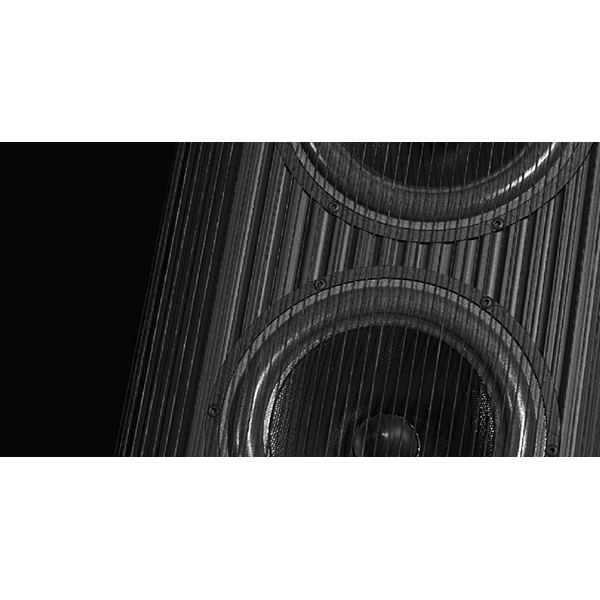

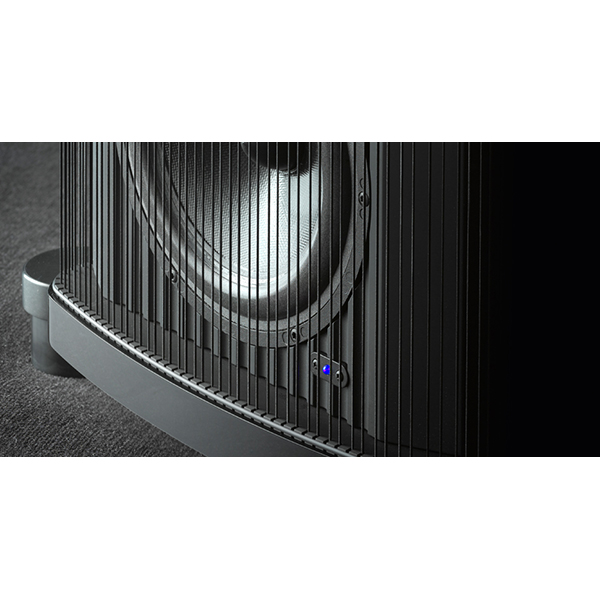

Eight custom-built 8” bass drivers for extreme speed and precision with massive air displacement

Integrated Linkwitz-Greiner Q Controller with preset and custom Q settings for ideal low frequency integration in any room

Triple-magnet bass driver motor system for maximum force and precise focus

Sealed bass enclosures with extensive internal bracing

Combination of pure wool and synthetic interior damping materials

Gryphon internal wiring

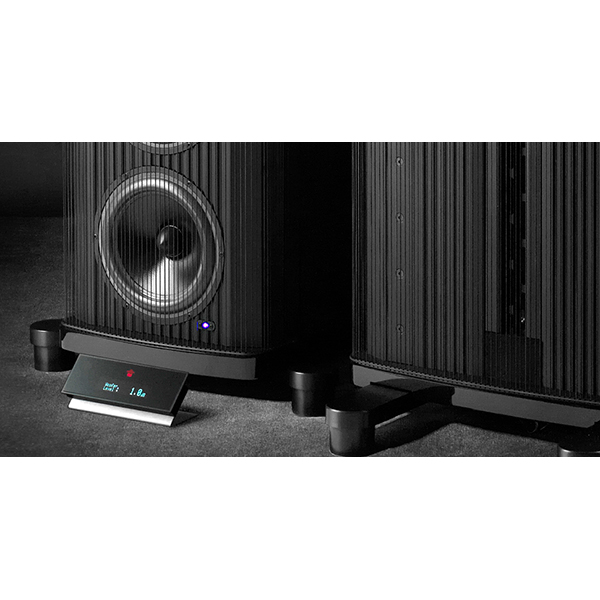

Remote control for Mute, Q setting, Bass Level and Low Cut

L link remote start-up circuitry

Non-invasive protection system

Stylish string grille for driver protection

Virtually unlimited custom finish options

Designed and built in Denmark
