Mode: MM / MC
Amplification @ 1 kHz: 54 dB (MC) 35 dB (MM)
Input impedance: 47kΩ / 220pF MM / MC

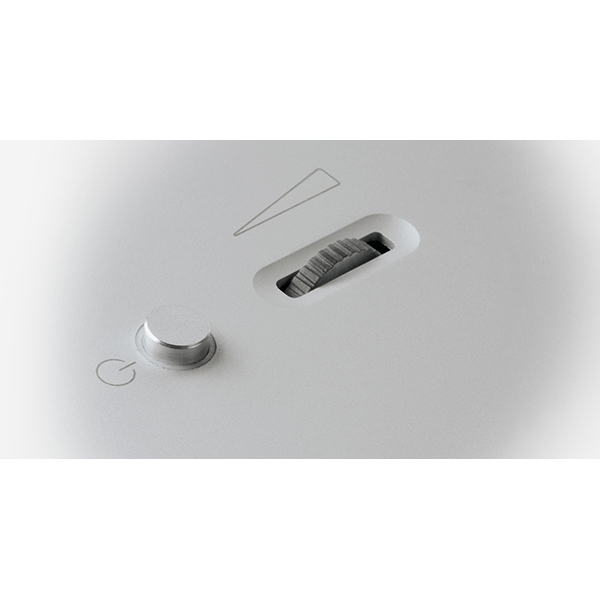

MM / MC input: Switchable (at base)
RIAA: 75µs / 318µs / 3180µs
RIAA accuracy: ± 0.3 dB
THD: 0.004 % (IEC A)
Signal to noise ratio: 69 dB (MC) / 85 dB (MM)
Channel separation: 90 dB
Frequency: 10Hz – 100kHz
Max. output voltage: 12 V eff (1 kHz)
Power supply: ± 21 V DC
Output connections: Unbalanced (RCA)
Weight: Approx. 620 g (preamp and power supply)
Dimensions (W/D/H in mm): 102 x 90 x 36
Manufacturer”s guarantee*: 3 years
